3D Printing Spherical Tungsten Powder 5-25µm

Stardust company provide spherical tungsten powder with high purity hypoxia, high sphericity, smooth surface, no satellite, uniform particle size distribution, excellent flow performance, and high loose density and vibrational density. With its excellent biocompatibility, tantalum implants formed by 3D printing have the closest elastic modulus to human cartilage tissue and are the most ideal orthopedic implants. Spherical tantalum powder is suitable for laser/electron beam augmentation, hot isostatic pressing, laser cladding, hot/cold spraying, and so on.

We can not only provide relatively mature research on pure tungsten spherical powder but also provide 3D printing services, metal spheroidization services, 3D printing machines and devices .

• Spherical Tungsten Powder Particle Size

5-25μm, 15-45μm, 15-53μm, 45-75μm, 45-105μm, 75-150μm.

(Various granularities can be customized according to customer requirements)

•  Particle Size Distribution Graphic

• Spherical Tungsten Powder characteristics

High purity (≥99.98%), low oxygen (≤300ppm), high sphericity (≥98%), smooth surface, no satellite spheres, uniform particle size distribution, and excellent flow properties (≤6.5s/50g), And high bulk density (≥10.0g/cm3) and tap density (≥12.0g/cm3).

• Spherical Tungsten Powder Applicable Progress

1. Laser/electron beam additive manufacturing (SLM/EBM, 3D printing)
2. Laser direct deposition (DLD)
3. Powder hot isostatic pressing (HIP)
4. Metal injection molding (MIM)
5. Powder metallurgy (PM)
6. Laser cladding ( LC), and other processes.

• Spherical Tungsten Powder Packaging

Vacuum packaging, 1kg/bag, 2kg/bag; iron drum lined with plastic bag 25 kg/drum; special packaging is available according to user requirements.

•  Chemical Composition

  Chemical Composition
  Element	Value (%)	Test Method	Element	Value (%)	Test Method
  W	≥99.98	——	Sn	＜0.001	ICP-AES
  Al	＜0.001	ICP-AES	Mo	＜0.001	ICP-AES
  Si	＜0.002	ICP-AES	Cu	＜0.001	ICP-AES
  Ni	＜0.001	ICP-AES	Fe	＜0.005	ICP-AES
  Gas Impurities
  Element	Value (%)	Test Standard	Element	Value (%)	Test Standard
  C	≤0.005	GB/T4324-2012	O	≤0.01	GB/T4324-2012
  N	≤0.003	GB/T4324-2012	P	≤0.002	GB/T4324-2012

• Physical Property

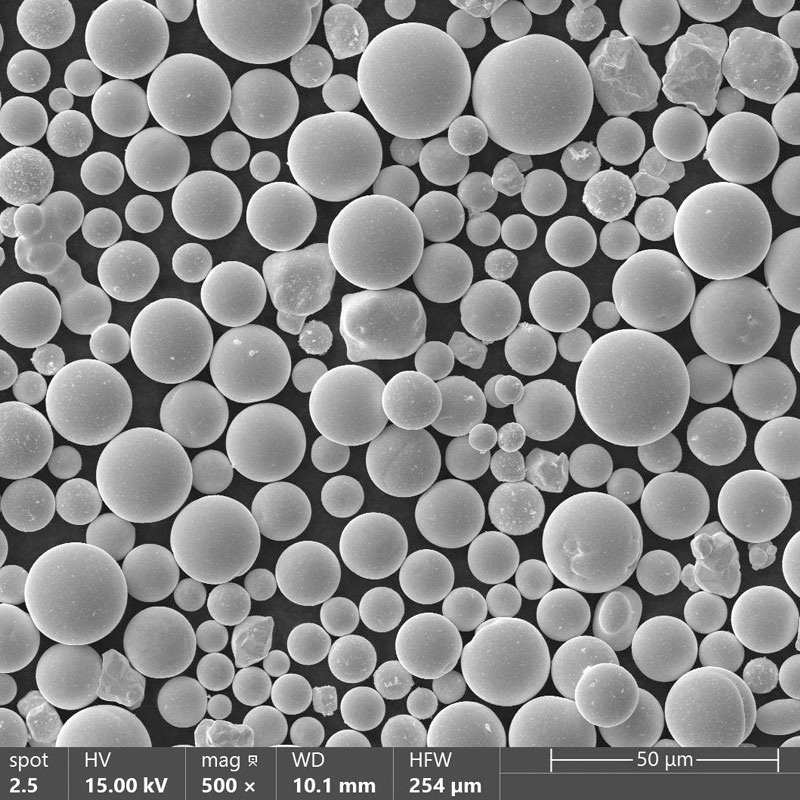

• Appearance
