Study on Properties of Low-Permeability Titanium-Zirconium-Niobium-Tin Alloy

Biomedical titanium alloys [1] serve as high-tech, economically valuable metallic materials for diagnosing and treating human tissues and organs. They are also widely used in repairing hard tissues such as bone trauma, artificial joints, and dental implants. However, current biomedical titanium alloys face numerous challenges during application. Among these, mitigating artifact issues [2] and maintaining mechanical properties represent critical problems requiring urgent solutions. Traditional simple titanium alloys exhibit significant performance limitations, making it difficult to overcome these constraints. Therefore, developing new alloy systems to meet biomedical demands is essential.

With continuous advancements in metallurgy, high-entropy alloys (HEAs) have garnered significant attention from researchers due to their exceptional properties. Compared to conventional alloys, HEAs are not constrained by primary and secondary element limitations. They typically incorporate five or more metallic or non-metallic elements with near-equimolar ratios, resulting in relatively complex compositions. Consequently, they exhibit several unique effects distinct from traditional alloys. Yeh [3,4] summarized these into four key phenomena: the high-entropy effect, the hysteresis diffusion effect, the lattice distortion effect, and the cocktail effect.

During the research on high-entropy alloys, some investigators discovered that medium-entropy alloys (MEAs) also exhibit certain characteristics of high-entropy alloys. Typically, MEAs contain three or four primary elements. While maintaining excellent mechanical properties [5] and corrosion resistance [6], they offer higher specific strength and lower costs compared to HEAs. This makes them promising for applications in aerospace, automotive manufacturing, and biomedical fields [7].

In studies of novel titanium alloy systems, researchers have discovered that certain Ti-containing high/medium-entropy alloys exhibit favorable mechanical properties. For instance, Yuan et al. [8] successfully developed a TiZrNbTa medium-entropy alloy using non-toxic alloying elements, achieving a minimum elastic modulus of 57 GPa—nearly half that of conventional biomedical titanium alloys— with a maximum yield strength of 1050 MPa. This innovation has yielded novel biomedical materials characterized by low elastic modulus, excellent mechanical biocompatibility, and low magnetic susceptibility. Wang et al. [9] designed a high-entropy alloy system of TiZrTaNbSn with varying Sn content. They observed phase composition and microstructure while characterizing mechanical, corrosion, and wear properties. The alloy achieved a compressive strength of 999.2 MPa with plastic strain exceeding 49.9%.

Building upon the design principles of high/medium-entropy alloys, this study selected the “TiZrNb+” medium-entropy alloy system with potential biomedical research value as the research subject. Alloying elements were added to design medium-entropy alloys with varying compositions. The properties of medium-entropy alloys with different Sn addition ratios were analyzed to identify the alloy system with superior performance.

1   Experiments

1.1   Specimen Preparation

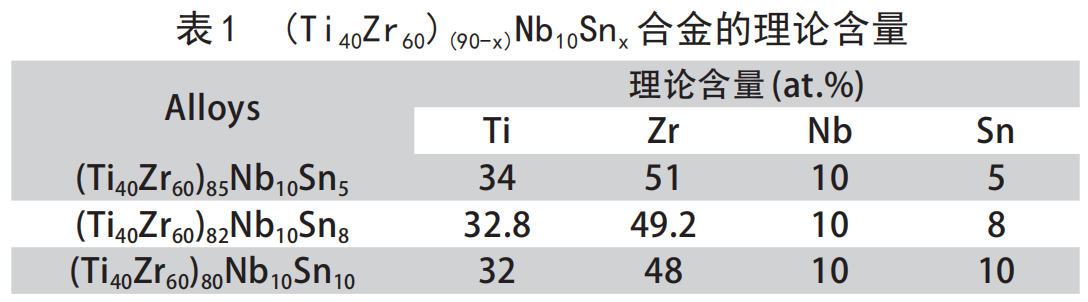

Sponge titanium, sponge zirconium, and niobium particles, all with a purity of 99.9% or higher, as raw materials to prepare Ti-Zr-Nb-Sn mesoentropy alloys. The sponge titanium and zirconium were irregularly shaped with sizes ranging from 3 to 25 mm. The niobium particles measured 1 to 10 mm, and the tin particles were Φ2 mm × 5 mm. The raw material composition is shown in Table 1. Materials were weighed using an electronic analytical balance with an accuracy of ±0.005 g. After weighing, samples were ultrasonically cleaned in acetone for 15 minutes and dried for later use.

For preparing titanium-zirconium-niobium-tin alloy ingots via vacuum arc melting, alloy raw materials were sequentially loaded into the crucible based on melting point (lowest to highest). After evacuating the chamber, argon was introduced as the protective gas, maintaining a furnace pressure of -0.05 MPa. To ensure uniform composition of the alloy ingot, the sample was inverted after each melting cycle. The process was repeated 5–6 times until homogeneity was achieved, with each cycle lasting 5 min and employing electromagnetic stirring. After melting, the mixture was cooled to room temperature, and samples were taken to obtain the alloy ingot.

1.2   Sample Characterization

The phase composition of the samples was analyzed using a Japanese Rigaku Ultima IV X-ray diffractometer (XRD). Specimen blocks measuring 10mm × 10mm × 3mm were cut, polished with sandpaper, and then subjected to XRD testing. Test conditions: Copper target, tube voltage 50kV, tube current 50kV, scanning speed 5º/min, step size 0.02º, scanning angle 20°–100°. After cold embedding, the block specimen was sequentially polished with sandpaper until the surface was smooth and flat, with no visible scratches under optical microscopy. The microstructure was then characterized using a field emission scanning electron microscope (FESEM).

Due to the small size of the alloy ingots prepared in this study and the absence of rolling treatment, only compression testing was conducted. The equipment used was an electronic universal testing machine (model SANS-CMT5105) with a compression speed of 0.48 mm/min. Specimens were cylindrical with a diameter of 5 mm and length of 8 mm. Surface oxides were removed by sanding. Three compression specimens were prepared for each alloy composition to minimize error. Compression stress-strain curves were obtained for the specimens. Nanoscratch testing was employed to characterize the hardness and elastic modulus of the alloys. Magnetic susceptibility measurements were performed using a PPMS comprehensive physical property measurement system. The magnetic susceptibility of each alloy composition was measured at room temperature over a ±6T range, with specimen dimensions of 2mm × 2mm × 2mm.

2   Results and Discussion

2.1   Phase Analysis

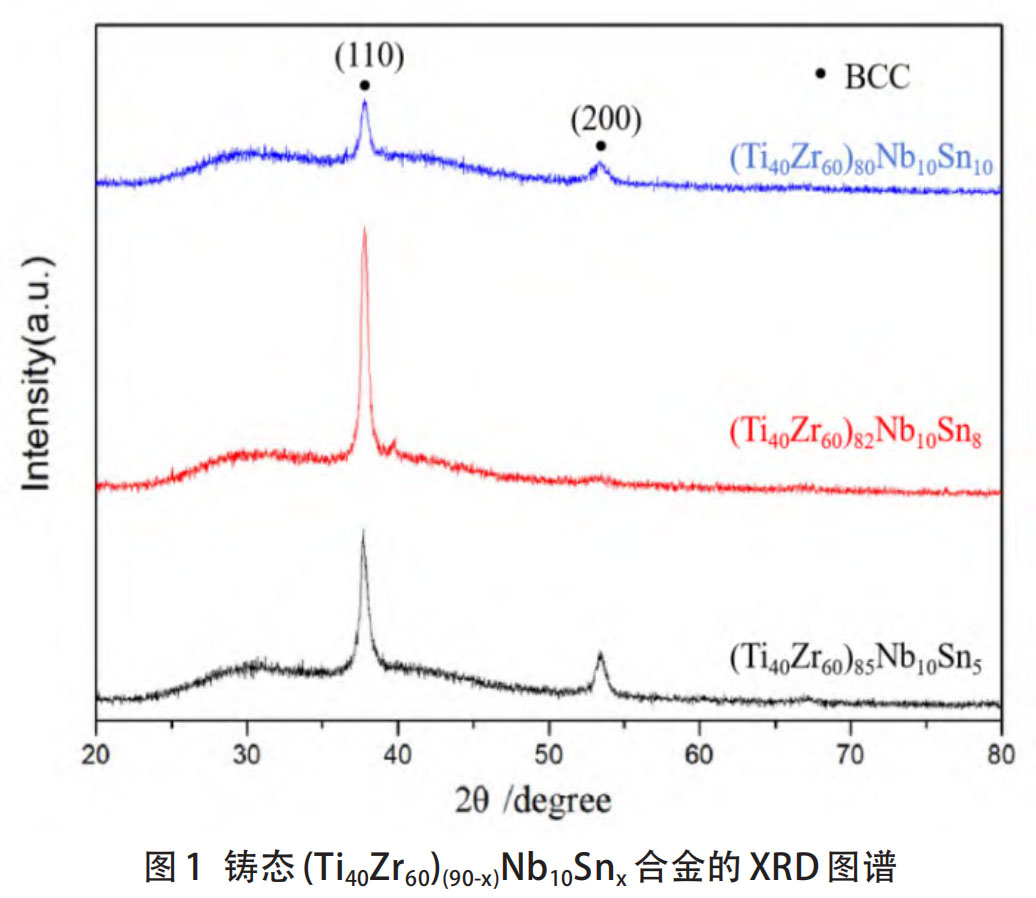

Figure 1 shows the XRD diffraction pattern of the (Ti₄₀Zr₆₀)(90-x)Nb₁₀Sn_x entropy alloy. The diffraction peaks consist of (110) and (200) crystal planes, corresponding to those of the BCC Ti solid solution.

All three alloys consist of a single BCC phase solid solution, with no intermetallic compounds, martensite, or ω phase formation. The peak with the highest intensity appears on the (110) crystal plane. As the Sn content increases, the (200) diffraction peak in the material's crystal structure first weakens and then strengthens, with the (200) diffraction peak intensity being highest in the alloy with 5% Sn content. Alloys with large grain size and high crystallinity exhibit intense diffraction peaks in the diffraction pattern, with the (110) crystal plane demonstrating the best crystallinity. Differences in crystal plane indices determine varying grain orientations. Consequently, during alloy solidification, the distribution of atomic positions differs, influencing crystal orientation and ultimately maintaining structural stability through preferred orientation.

As Sn content increases, the alloy's diffraction peaks slightly broaden. Since crystals obtained via vacuum arc melting are typically coarse-grained, relevant studies [10-12] indicate that grain size variations at this stage have negligible impact on peak broadening in XRD testing. Furthermore, since the atomic radii of Zr (0.162 nm) and Sn (0.154 nm) are slightly larger than that of Ti (0.147 nm), it can be inferred that the crystal structure undergoes minor distortion when titanium atoms are substituted by zirconium and tin atoms, thereby affecting other crystalline properties. The XRD results confirm that: Zr and Sn, as neutral elements in titanium alloys, have little effect on the α/β transformation temperature. They dissolve extensively in both α and β phases, contributing to solid solution strengthening. Conversely, Nb, as a β-stabilizing element, lowers the martensite transformation temperature and effectively suppresses the precipitation of acicular martensite and ω phase. The simultaneous addition of Zr, Sn, and Nb to the titanium alloy facilitates the attainment of a medium-entropy alloy with a low elastic modulus.

2.2 Microstructural Analysis

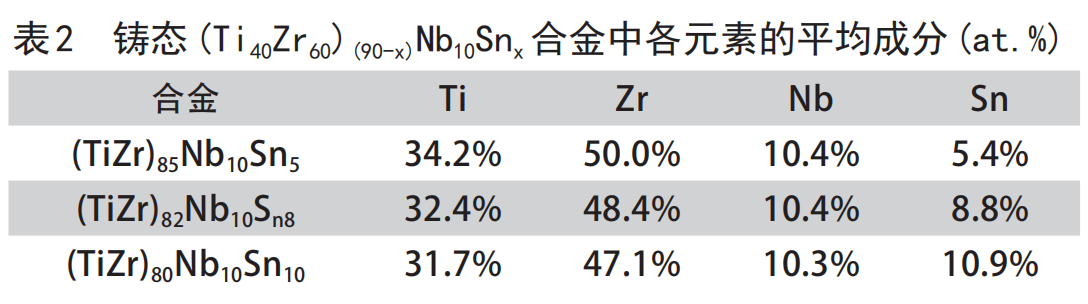

Microstructural and elemental distribution scans were conducted at 1000× magnification using a scanning electron microscope. The elemental distribution map reveals relatively uniform distribution of Ti, Zr, and Nb within the alloy, with no significant elemental segregation observed.

Analyzing the differences in melting points among the alloying elements (melting points in descending order: Tn > Tzr > Tti > Tsn), during alloy solidification, Nb crystallizes first at the dendrites. As the temperature further decreases, Zr and Ti also crystallize at and between dendrites. Finally, most Sn crystallizes at grain boundaries. Analyzing the direction of mixing enthalpy from thermodynamic parameters, Sn has the potential to form compounds with Ti, Zr, and Nb. However, Zr-Sn and Ti-Sn exhibit stronger bonding forces. Consequently, Sn may co-distribute with Ti and Zr in the inter-dendritic regions. EDS surface scanning analysis of the medium-entropy alloys yielded the average elemental compositions shown in Table 2. As evident from the table, the average composition of each alloy slightly deviates from the nominal composition. This discrepancy arises from minor volatilization and spattering during alloy melting, as well as differences in the melting points of the constituent elements.

2.3   Mechanical Properties Analysis of Titanium-Zirconium-Niobium-Tin Alloys

2.3.1    Room Temperature Compression Properties

The TiZrNb-based entropy alloy itself is a strong lattice distortion solid solution with high strength, exhibiting a tensile yield strength of approximately 830±21 MPa. The addition of a small amount of Sn further enhances the alloy's strength through solid solution strengthening, resulting in values of 822.75 MPa, 1074.49 MPa, and 1216.69 MPa, respectively. Typically, the compressive strength of metallic materials is 1.0 to 2.0 times their tensile strength. These results indicate that this alloy system exhibits high strength and high plasticity. Furthermore, subsequent processes such as cold rolling followed by recrystallization could be considered to refine the grain structure, thereby further enhancing the alloy's properties. Additionally, curve fitting during the elastic deformation stage of compression yielded elastic moduli of 180.21 GPa, 175.29 GPa, and 180.72 GPa for the three alloys. Since no extensometer was used during compression, slight indenter deformation caused minor displacement data discrepancies, affecting the elastic modulus values. Therefore, to obtain more accurate elastic modulus values, nanoindentation testing was subsequently performed on the alloys.

2.3.2    Nanoindentation Analysis

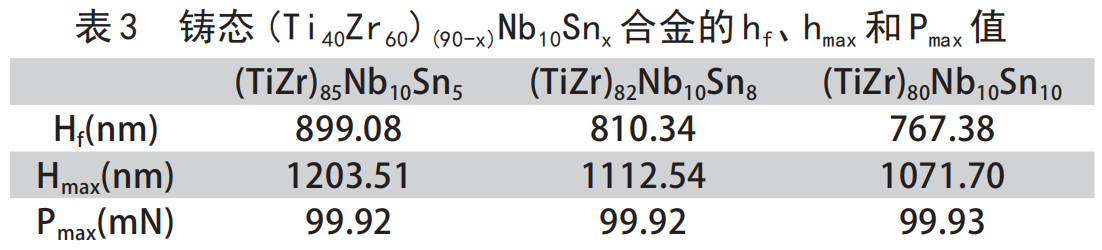

The nanoindentation test results are shown in Figure 2. The maximum load was set at 100 mN with a dwell time of 10 s. Under identical loading conditions, the maximum indentation depth (h_(max)), residual indentation depth after load removal (h_f), and maximum load during indentation (P_(max)) for each alloy are summarized in Table 3. The small residual indentation depth after unloading and significant elastic recovery indicate substantial elastic deformation and minimal plastic deformation during loading. The (TiZr)80Nb10Sn10 alloy exhibited the smallest residual indentation depth after load removal, demonstrating the strongest resistance to plastic deformation.

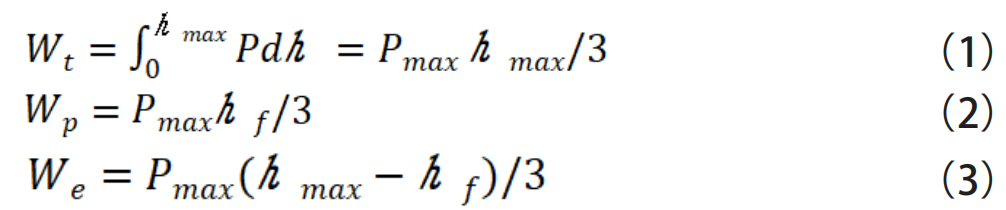

In the load-displacement curve, the area below the unloading curve represents the elastic work (We) of the material during the indentation test, while the area between the unloading and loading curves represents the plastic work (Wp). The ratio k between these two areas characterizes the material's properties. The area enclosed by the loading and unloading curves characterizes the plastic deformation work of the alloy during loading, indicating the extent of plastic deformation [13]. According to Tuck's theory [14], plastic work (Wp), elastic work (We), and total deformation work (Wt) can be expressed respectively as:

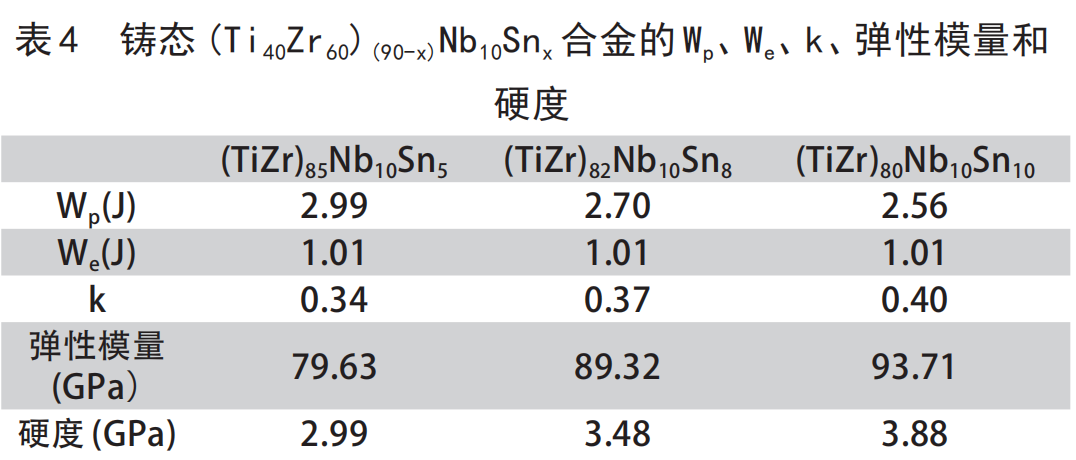

Calculations yield K values (We/Wp) of 0.34, 0.37, and 0.40 for the alloys. As Sn content increases, K values progressively rise; higher K values indicate greater load-bearing capacity. The figure also illustrates the magnitude of the alloy's elastic modulus and hardness. Results are summarized in Table 4: the (TiZr)85 Nb10Sn5 alloy exhibits a relatively low elastic modulus of 79.63 GPa, while the (TiZr)80 Nb10Sn10 alloy demonstrates higher hardness at 3.88 GPa.

2.4   Analysis of Magnetic Susceptibility in Titanium-Zirconium-Niobium-Tin Alloys

2.4.1    Mass Magnetic Susceptibility of Alloys

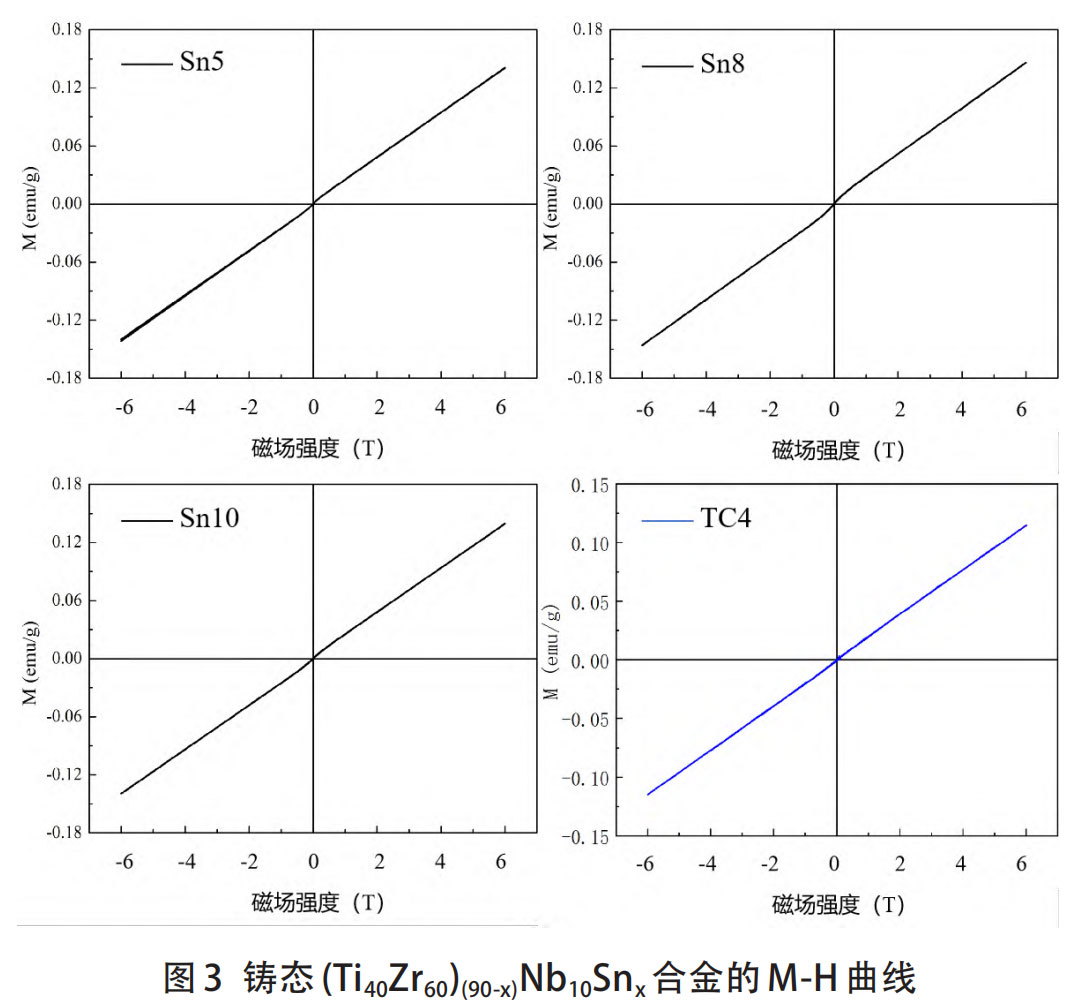

The M-H curves obtained from comprehensive physical property testing of the samples using PPMS are shown in Figure 3. The horizontal axis represents magnetic field strength (T), while the vertical axis denotes magnetization intensity (emu/g). All alloy M-H curves exhibit linear trends, indicating typical paramagnetic behavior with weak magnetic field response. Linear fitting of the curves yields the mass magnetic susceptibility of the alloys.

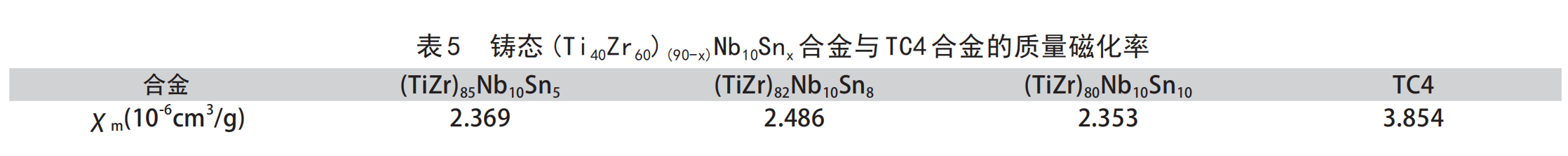

The mass magnetic susceptibility values of the alloys are summarized in Table 5. The mass magnetic susceptibility of all three titanium-zirconium-niobium-tin-based entropic alloys studied in this paper is lower than that of TC4 (3.854×10⁻⁶ cm³/g), indicating that these alloys hold potential for suppressing artifacts in MRI testing. With increasing Sn content, the mass magnetic susceptibility first increases and then decreases, indicating that its magnitude is not solely influenced by the elemental composition of the alloy. Beyond a certain Sn content, the susceptibility may stabilize at a relatively constant value. The magnetic susceptibility did not decrease continuously with increasing Sn content. This phenomenon may result from grain distortion. As previously mentioned, Sn addition induces lattice distortion. Deng Shanshan et al. [15] et al. demonstrated that lattice distortion induced by stress significantly influences magnetic susceptibility variations. This finding indicates that changes in magnetic susceptibility for entropy-based alloys in titanium-zirconium-niobium-tin are not solely related to elemental composition and phase structure but are also correlated with factors such as microstress within grains.

2.4.2    Volume Magnetic Susceptibility of Alloys

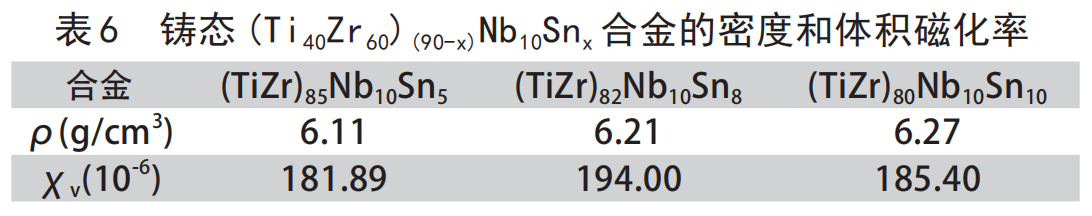

The larger the magnetic susceptibility per unit volume of a material, the greater the MRI artifact area it produces. Therefore, it is essential to determine not only the mass magnetic susceptibility but also the volume magnetic susceptibility of the alloy, as the latter exerts a more significant influence on MRI testing. According to the formula, the density of the alloy was first calculated using the Archimedes displacement method, followed by the calculation of the alloy's volumetric magnetic susceptibility. The results are shown in Table 6, which lists the density and volumetric magnetic susceptibility of the three alloys. Compared to alloys like CoCr (805.5×10⁻⁶) and TC4 (235.08×10⁻⁶), the volumetric magnetic susceptibility of the three prepared alloys shows a significant reduction. Moreover, as the Sn content increases, the volumetric magnetic susceptibility exhibits a trend of first rising and then decreasing, indicating that the same influencing factors also affect the volumetric magnetic susceptibility. The density of Sn is 7.3 g/cm³, higher than that of Ti (4.51 g/cm³), resulting in a slightly higher alloy density than pure titanium after alloying. As shown by the results above, the (TiZr)85Nb10Sn5 alloy exhibits the lowest mass susceptibility and volume susceptibility, with values of 2.369×10⁻⁶ cm³/g and 181.89×10⁻⁶, respectively.

3. Conclusion

The (Ti40Zr60)(90-x) Nb10Snx alloy exhibits relatively uniform element distribution without significant segregation, forming a single-phase BCC solid solution structure.

The (Ti40Zr60)(90-x) Nb10Snx alloy demonstrates good plasticity, with fracture strains exceeding 50% across all variants. with the (TiZr)80Nb10Sn10 alloy exhibiting the highest plasticity. This alloy possesses high yield strength and hardness, reaching 1216.69 MPa and 3.88 GPa, respectively. In contrast, the (TiZr)85Nb10Sn5 alloy exhibits a lower elastic modulus of 79.63 GPa. Due to its relatively coarse grain structure, grain refinement techniques such as cold rolling followed by recrystallization can be employed to enhance the alloy's properties.

With increasing Sn content, both the mass and volume magnetic susceptibility exhibit a trend of initial increase followed by decrease. The (TiZr)85 Nb10Sn5 alloy possesses the lowest mass susceptibility and volume susceptibility, at 2.369×10⁻⁶ cm³/g and 181.89×10⁻⁶ cm³/g, respectively.

Reference: Study on Properties of Low-Magnetization Titanium-Zirconium-Niobium-Tin Alloy; Guo Kaiyue, Wang Tao; Nanjing University of Aeronautics and Astronautics, Nanjing 211100, Jiangsu, China
